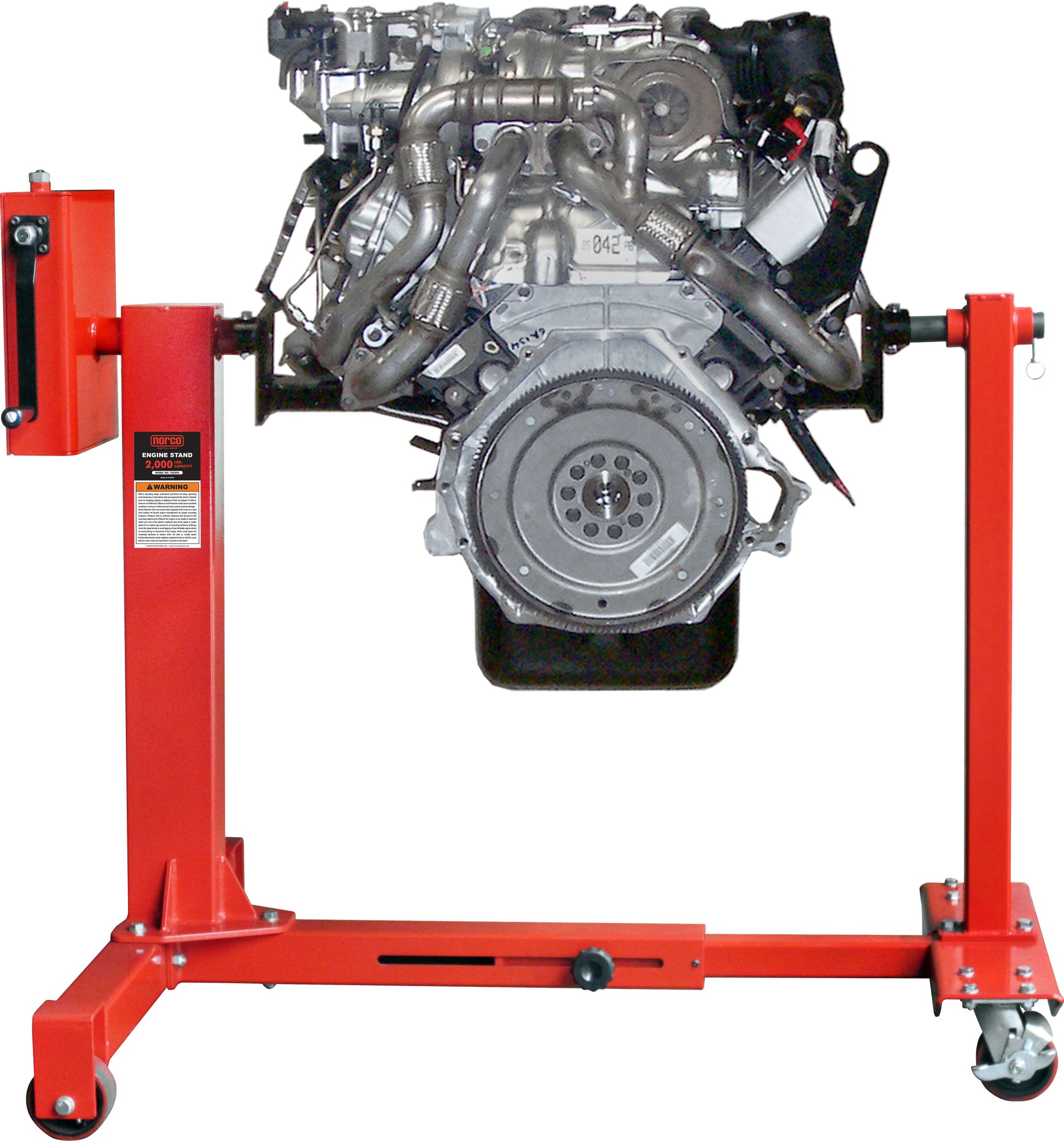

2,000 Lbs. Capacity 75:1 Gear-Driven Engine Stand
2,000 Lbs. Capacity 75:1 Gear-Driven Engine Stand
Regular price
$1,760.00
Regular price
Sale price
$1,760.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
A twin-post design made for use with automobile, light-duty truck, and medium-duty truck engines and transmissions
FEATURES:
- 75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position.
- Meets the ASME PASE performance and safety standards.
- Two rigid rear wheels. One of the two front swivel casters has a lock for maximum stability and support.
- Polyurethane wheels provide protection for expensive tile and epoxy floors.
- Includes two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware.
- Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines. Mounting plates can be adjusted 36-1/4” apart.
| Height | 42" |
| Width | |
| Front | 21.25" |
| Rear | 40" |
| Length | |
| From | 38.25" |
| To | 53.25" |
| Shipping Weight | 315 Lbs |
Optional Adapters Available
- Ford 6.0L and 6.4L Engine Mounting Adapter
- Ford 6.2L Engine Mounting Adapter
- Ford 6.7L Engine Mounting Adapter
- Dodge Cummins 6.7L Engine Mounting Adapter
WARNING: Cancer & Reproductive Harm. www.P65Warnings.ca.gov
