700R4 4L60 4L60E 4L65 4L70E 4L75E Deep Transmission Pan 1982 and Later GM - Brushed Pacific Performance Engineering

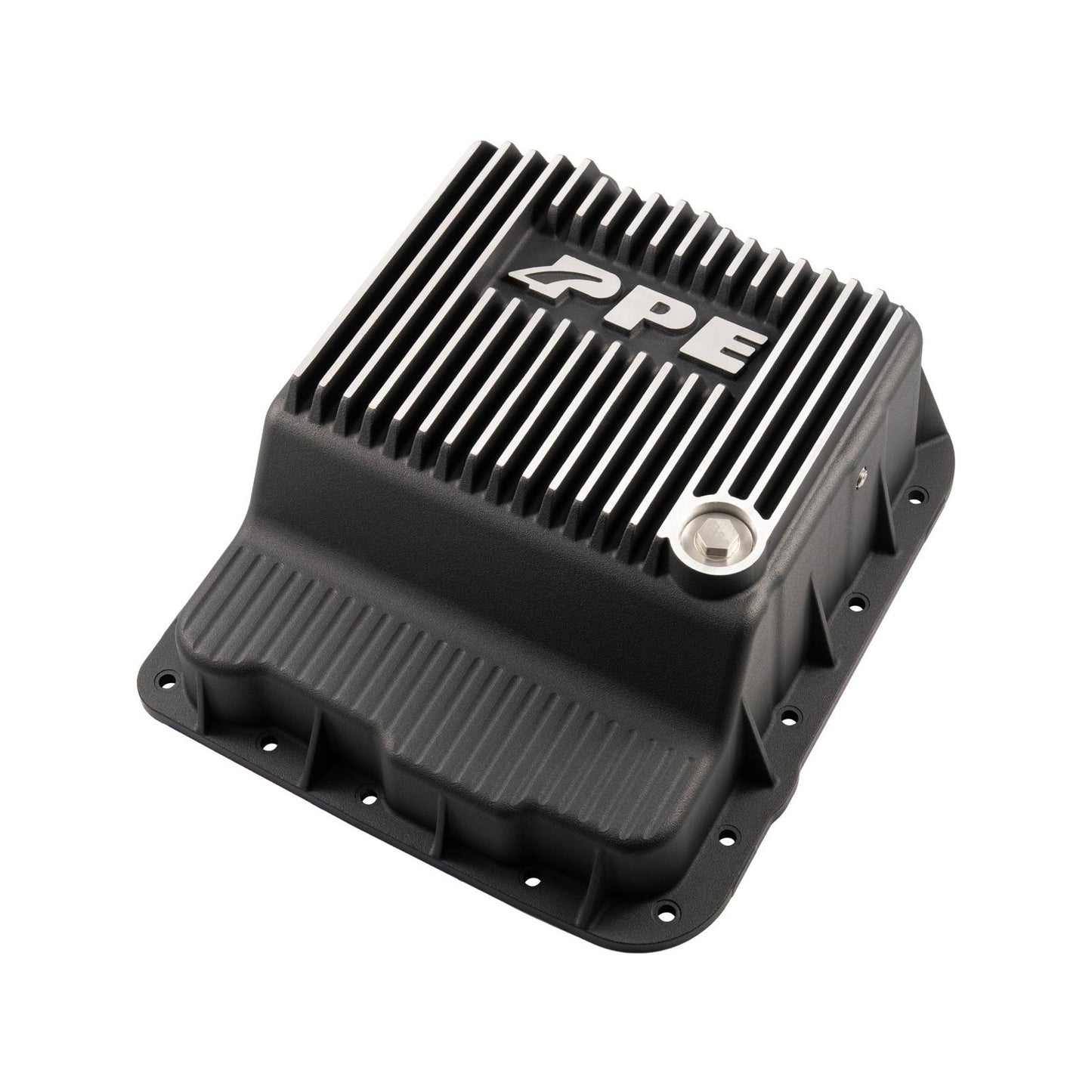

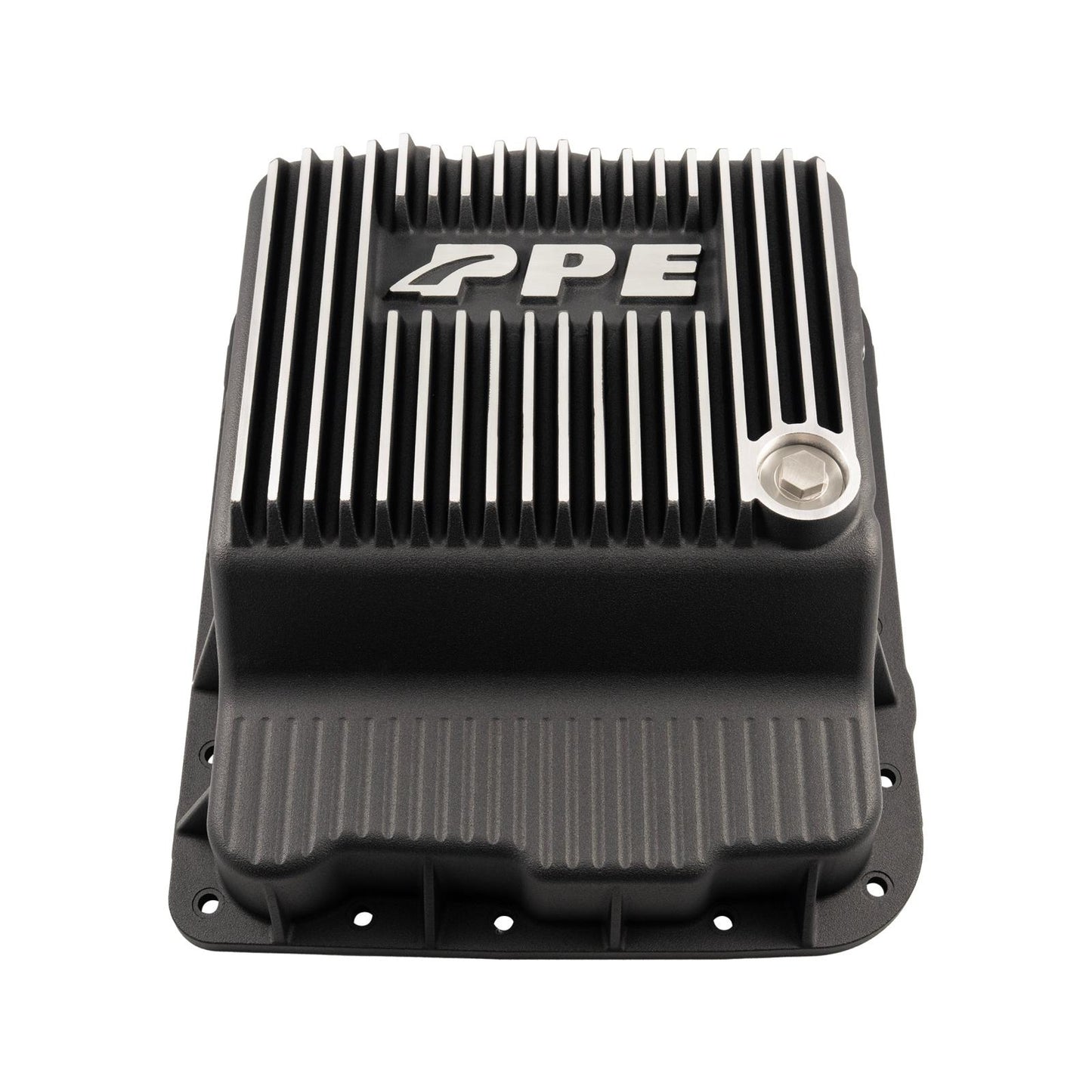

Elevate Your Vehicle's Performance with the PPE Heavy-Duty Cast Aluminum Deep Transmission Pan. The PPE transmission pan is designed to work with GM 700R4, 4L60, 4L60E, 4L65, 4L70E, 4L75E transmission.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE Transmission Pan offers far superior impact and warping resistance compared to the factory stamped pan. Its robust construction ensures long-lasting protection and performance. The deep external cooling fins maximize the heat-wicking surface area and keep your transmission cool under pressure.

The built-in baffles at the bottom of the pan increase the contact area between the fluid and the cast surface, enhancing its heat transfer capabilities. These baffles also minimize fluid sloshing, ensuring uninterrupted fluid pickup and stable transmission performance.

The PPE Pan's billet stainless steel drain plug is equipped with a powerful neodymium magnet that captures ferrous particles, providing additional protection for your transmission. Each pan includes a new deep transmission filter and a flat gasket.

Keep your GM transmission running longer, healthier, and cooler with PPE.
Features:

• 700R4 4L60 4L60E 4L65 4L70E 4L75E Deep Transmission Pan 1982 and Later GM - Brushed
• High-strength, durable A356.0-T6 aluminum alloy
• Precision cast using permanent steel molds
• 3 quarts additional fluid capacity
• External fins improve heat dissipation, lower transmission fluid temps, and increase strength
• Internal baffles increase heat dissipation and reduce fluid sloshing
• High-temperature rated Neodymium magnet equipped, 304 stainless steel drain plug with Viton O-ring
• Built-in filter supports ensure proper filter placement

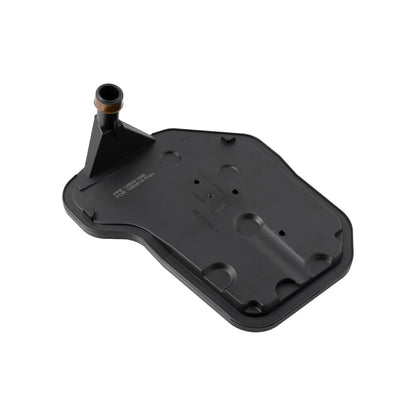

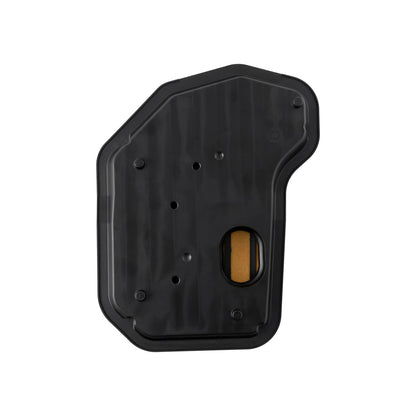

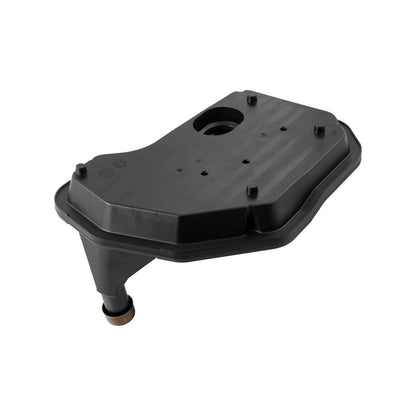

• New transmission filter and gasket included
• Patent Pending

Notes:

• Check your vehicle for clearance issues with the exhaust, drive shaft, and frame cross members. For filter replacement, use PPE Transmission Filter SKU 128051586.
• OEM Equivalent Transmission Pan GM P/Ns: 24229658, 24240207, 8667545
• OEM Equivalent Transmission Filter GM P/Ns: 24208576
