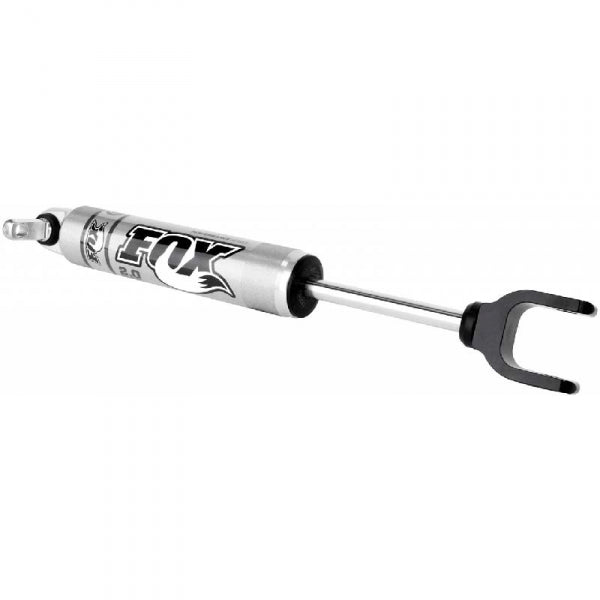

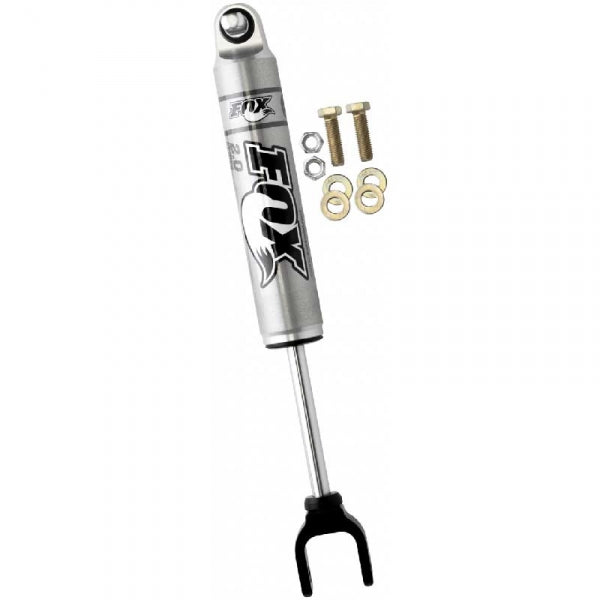

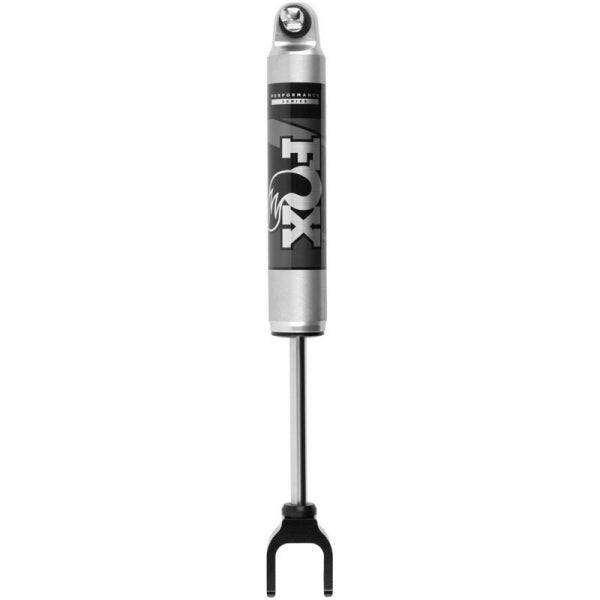

Fox 980-24-963 2.0 Performance Series IFP Shock Absorberb

The Fox 980-24-963 2.0 Performance Series IFP Shock Absorber contains the latest in shock technology to transform the performance of your Chevy Silverado or GMC Sierra 2500HD/3500HD. FOX shocks use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

FOX 2.0 Shocks feature a precision metal impact aluminum body to increase cooling capacity and will never rust. Inside this FOX shock, you will find race-proven performance valving technology. An Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application-specific valving of the FOX Performance Series 2.0 IFP shock provides upgraded damping while delivering a smooth and controlled ride on and off-road.

FEATURES:

• Fox Shocks 2.0 Performance Series

• Piston: Race-Developed High-Flow Piston Design
• Body Plating: Clear Anodized For A Durable Finish
• Shaft: 5/8" Hard Chrome Plated Heat-Treated Alloy Steel
• Valving: Application Specific Valving To Maximize Performance
• Mounting: Direct Replacement For Stock And Aftermarket Lift Kits
• Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
• Body: 2.0" Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
• Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
• Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
• Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
• Internal Reservoir: Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From High-Pressure Nitrogen
• Sold Individually

SPECIFICATIONS:

• Extended Length: 18.62
• Compressed Length: 13.08
• Travel: 5.62

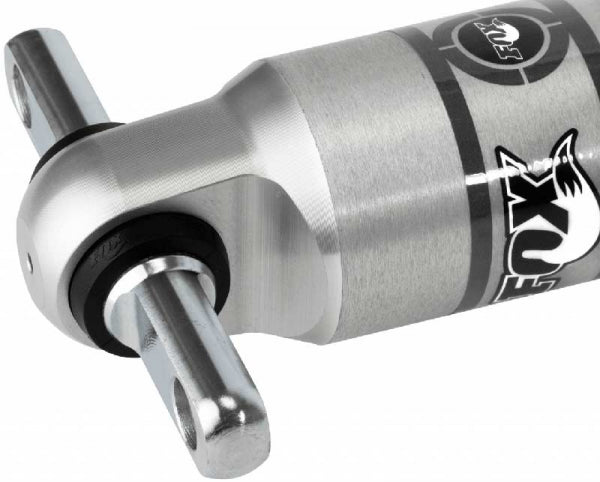

• Top Mount: Bar Pin
• Bottom Mount: C1

Applications: 2011-2019 GM 2500HD/3500HD 2WD/4WD Lifted 0"-1"* (Front)

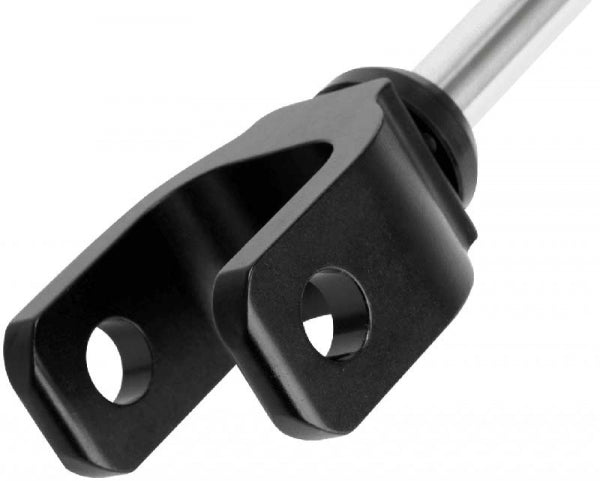

Note: This shock features a lower clevis mount. Please check and confirm that your application uses this style mount before ordering.
0"-1" Lift is suggested by mfg. Due to the many different aftermarket suspension systems, it is recommended that a measurement is taken for proper application.
Shock Absorbers sold individually.
