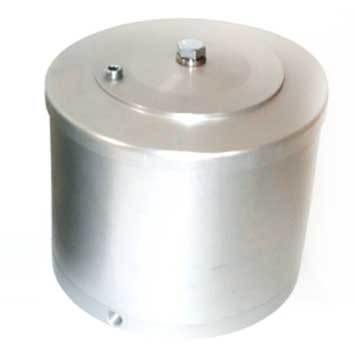

Cummins ISC/ISB & Paccar PX9 Bypass Oil Filtration Kit

Cummins ISC &ISB 8.3/8.9 Paccar PX9 Bypass Oil Filtration Kit

Engine Oil Capacity Options
• 16-32 Quarts
     • "Extreme3" Filter housing (HX3LH)
     • "Extreme3" filter element (EX3LE)
     • Mounting bracket with hardware (ZBrckX3)
     • Housing O-rings (GX3)
• 32-64 Quarts
     • "Extreme4" Filter housing (HX4XLH)
     • "Extreme4" filter element (EX4XLE)
     • Mounting bracket with hardware (ZBrckX4)
     • Housing O-rings (GX4)
2 In/out port fittings (EM11X, AN06-06FJ)
1 Pressure port fitting (AN06-02MP, AN06-06FJ)
1 Return port fitting (AN06-22MMX1.5, AN06-06FJ90)
12ft of hose to be cut to your preference

Optional accessories:

• Oil sample pump $165 connects to filter cap (contact us to add to your order)

• Additional Extreme3 filter element

• Crimped hose can be ordered separately (contact us to add to your order)

Installation:

• Pressure port is shown in the photos below
• Return port is located on the side oil drain plug
• Refer to our general installation guides for more information
• Refer to our custom installation and mounting guide for tips on how to mount our filter
