Dodge 3.0L Ram 1500 EcoDiesel Bypass Oil Filter Kit

Dodge Ram 1500 EcoDiesel 3.0L Bypass Oil Filter Kit

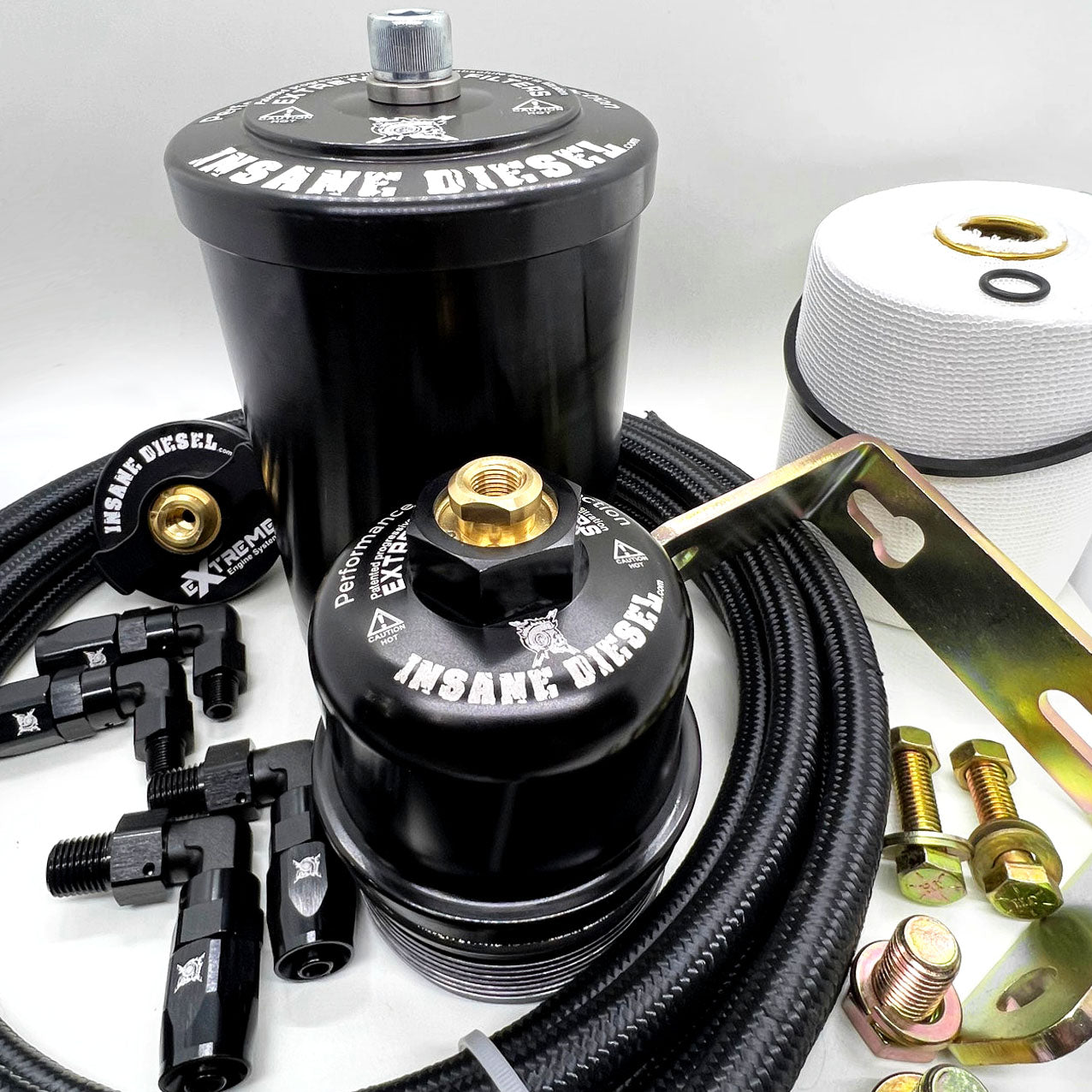

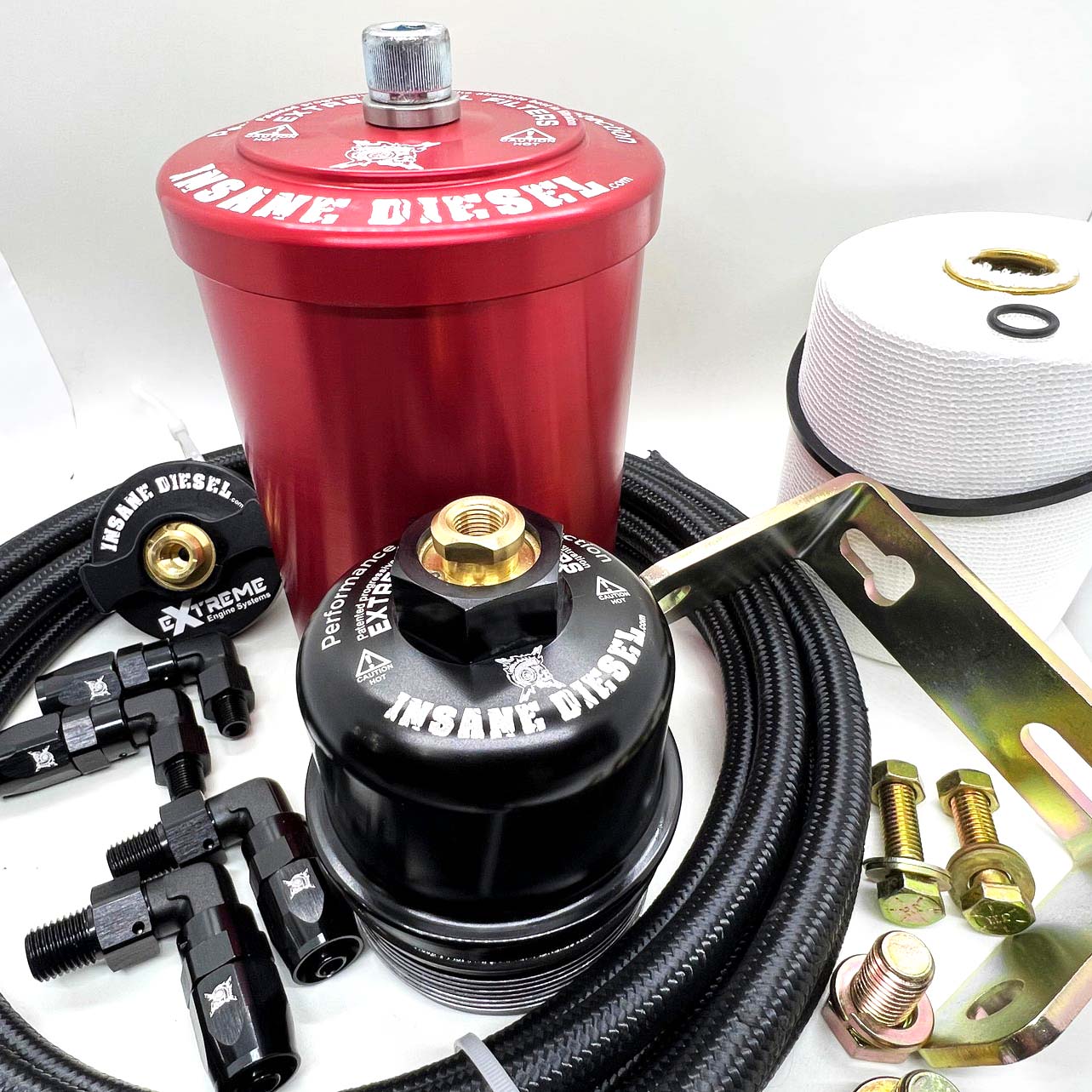

This kit includes

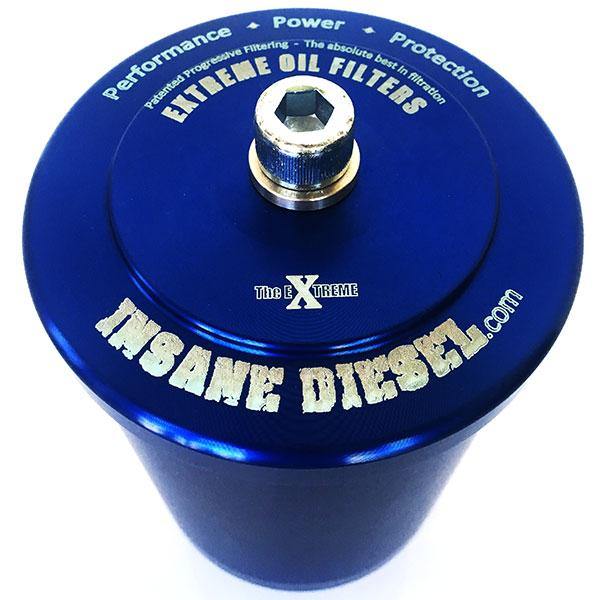

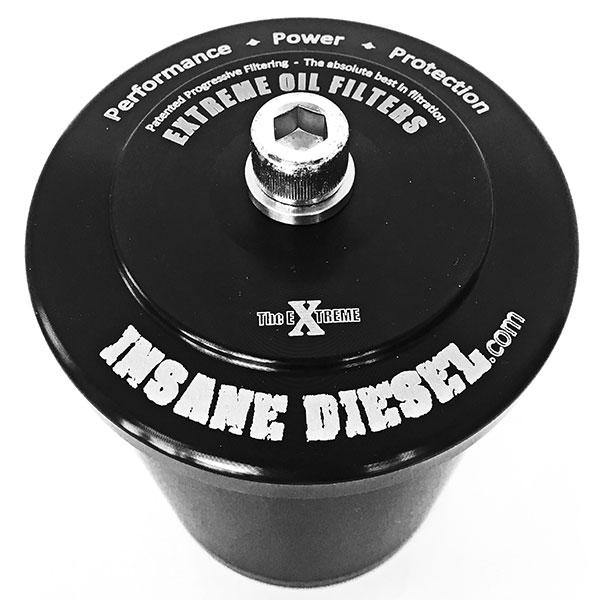

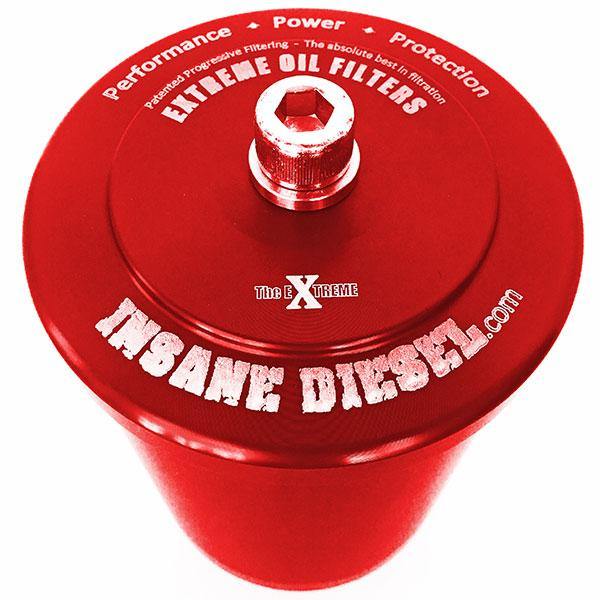

• "EXTREME2" bypass oil filter housing w/ o-rings

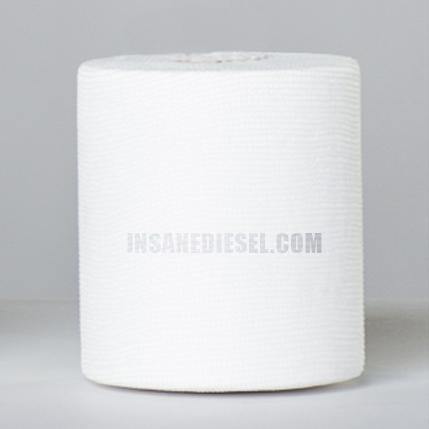

• "EXTREME2" filter element
• Housing in/out fittings (AN06-04MS90)
• Oil return filler cap fittings (AN06-02MS90)
• 9ft of hose to be cut to your preference (LW06BK)
• 1 BLACK oil return filler cap with swivel return port (FLLCEDO)

• 2014-2019 Pressure Port Options:
   • Tee fitting (TSTEM10) with straight center branch fitting 1 (AN06-02MS90)

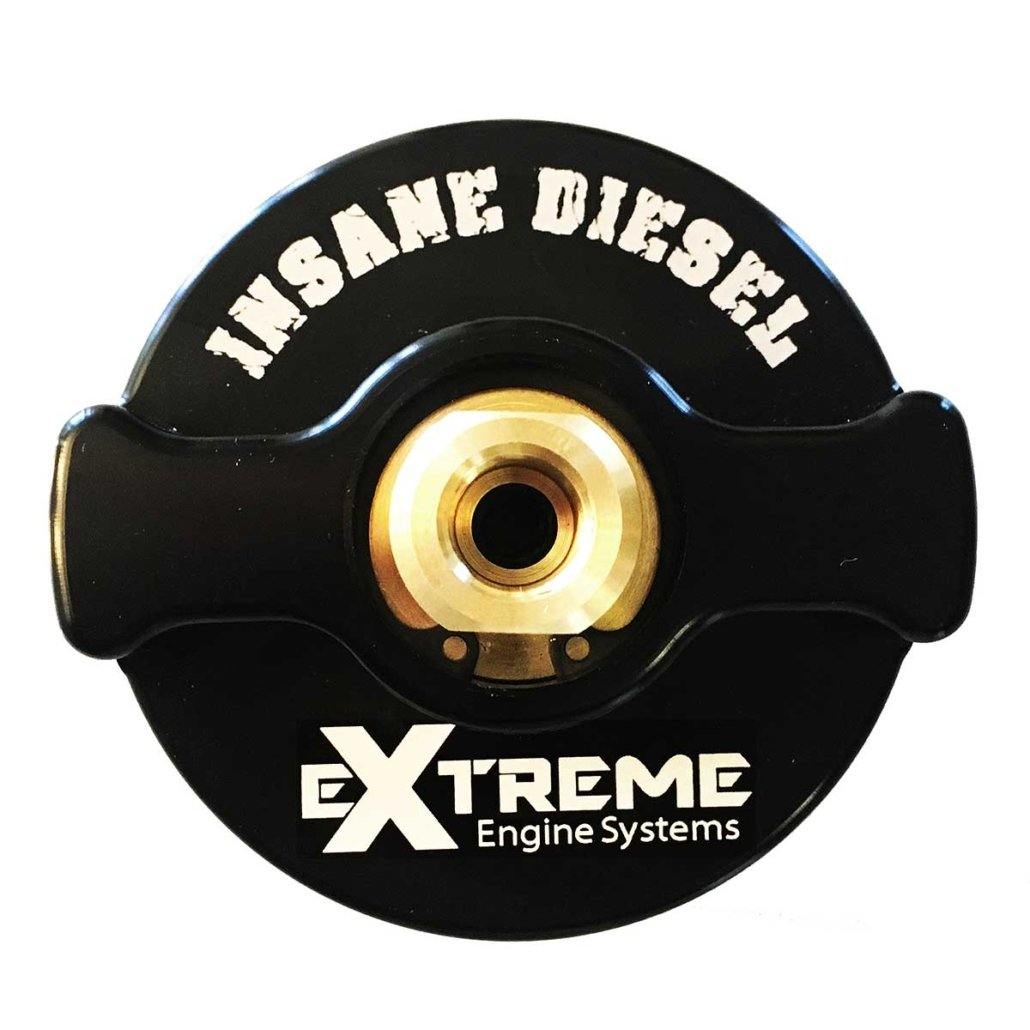

   • Filter cap (PCED30) and elbow cap fitting (AN06-02MS90)

• 2020 - NEWER Pressure Port Options:
   • Custom Tee fitting (TM14) , elbow center branch fitting (AN06-02MP90,AN06-06FJ)

   • Filter cap (PCED30) and elbow cap fitting (AN06-02MS90)

• Bracket Options:

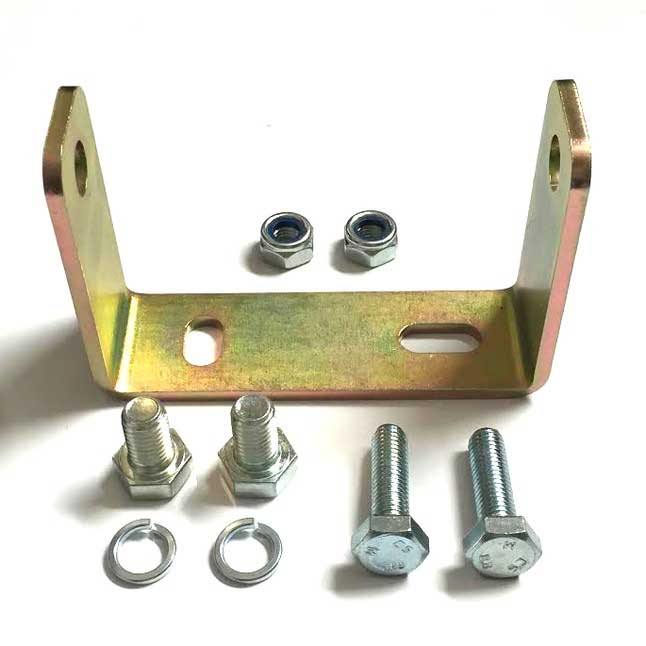

   • Suspension mount, modified zinc colored mounting bracket and bracket hardware (ZBrckX12)
   • Under the hood bracket (UTHS)
• 1 Year Insane Diesel manufactured parts warranty

Important Notes Regarding GEN4 and GEN5 Compatibility:

• Our filter cap w/ pressure ports is compatible with ALL EcoDiesel 3.0 engines (even 2020+ models), but you must snap in a 2014-2019 stock filter  with our filter cap (even for newer 2020+ models). Don't forget to place the o-ring that comes with new stock filter on our filter cap too.


•  Owners of 2020-Newer models now have the option to select the tee fitting pressure port, which gains access to the oil pressure supply through your vehicle's oil pressure sensor.

• The Suspension mount option is not compatible with engines that have air suspension cable. The "under the hood" bracket is recommended for this type of vehicle.


• Under-the-hood bracket mount requires modification to the bracket: cutting, drilling, trimming of the vinyl cover, and bolts. Watch this video to see a fan made description of this mounting location



Installation Guide:

Installation Guide PDF

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque.

Mounting Examples:

Under-the-hood bracket mount: watch example video

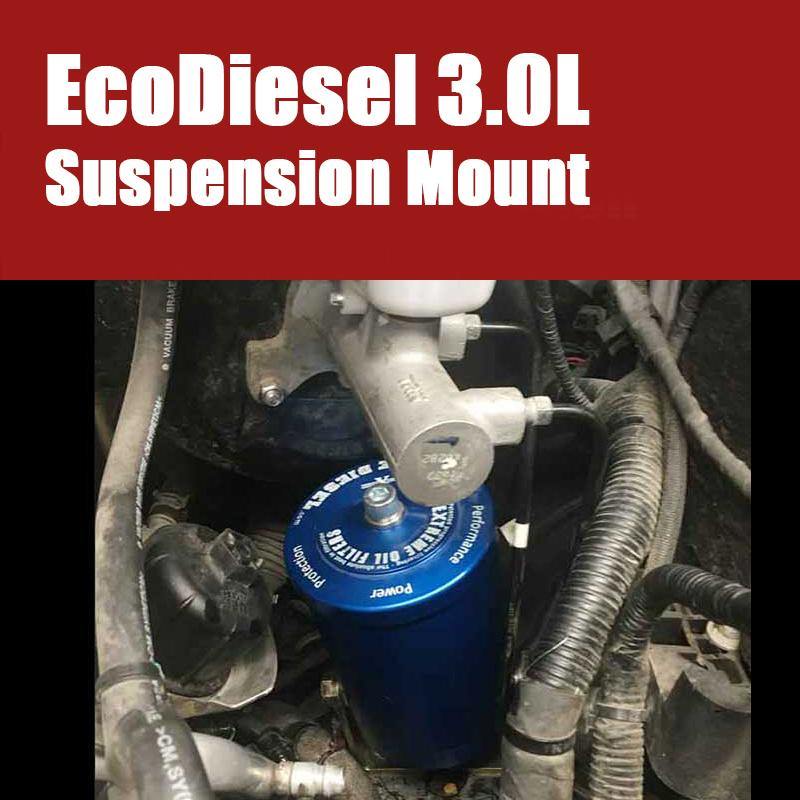

Suspension mount:

BENEFITS OF ULTRA-FINE OIL FILTRATION
